- Place of Origin: China
- Brand Name: SPARK
- Model Number: SE-00a
Value for money

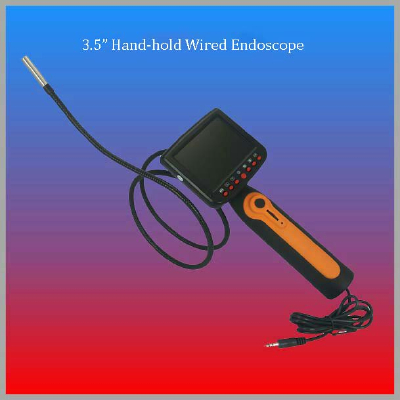

Industrial Inspection Camera- Endoscope
Features:
1,Allows for easy surveying of small,hard-to-reach places
2,Mini 9.0/8.0/6.0/5.0/4.0mm waterproof LED lens,1.0meter flexible tube.
3,Manufactured and tested to IP67 waterproof standard

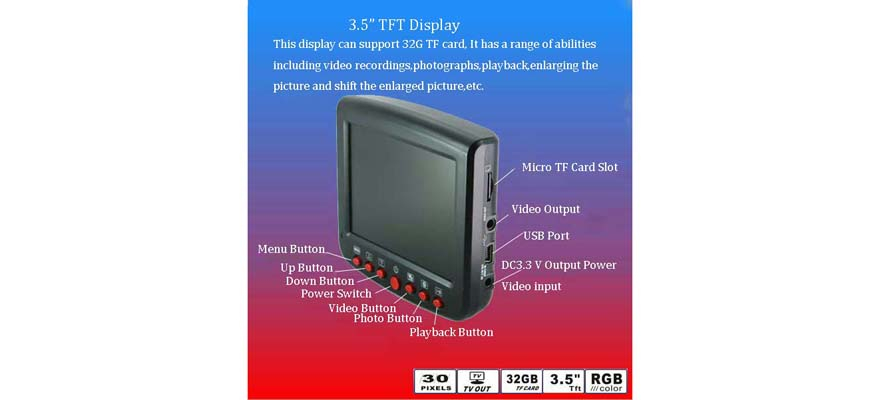

4,3.5” TFT-LCD detachable/mountable monitor,built-in rechargeable Li-battery.
5,Video recording capability,supports up to 32GB micro TF card
6,Adjustable brightness on lens-mounted LED light
7,Light weight,handhold design,flexible and convenient to use
8, Supports multiple languages
Applications
1,Car repairs/Maintenance.
2, Automobile, aviation engine, pipes, machinery parts, etc.,
3,Inspect inner weld, corrosion, clogging, differences, foreign bodies of ventilation pipe,
air conditioning pipe, water pipe, industrial pipe.
4,And so on and so forth.
Shenzhen Spark High-tech Co.,Ltd.
Contact: Adele Shang
Email:shangyingyan@foxmail.com
Linkedin:shangyingyan@foxmail.com
Skype:live:shangyingyan
Mobile:18857446107
Welcome to contact us!
- Place of Origin: China
- Brand Name: SPARK
- Model Number: SE-00a
| Specifications | ||
| Model No. | SE-00A | |
| Camera | Imaging Sensor | CMOS |
| Total Pixels | 640X480(PAL) 40X480(NTSC) | |
| Horizontal Viewing Angle | 60° | |
| Transmission Frequency | 2414MHz | |
| Minimum Lumination | 0.1 Lux /F2.0 | |
| Modulation Type | FM | |
| Power Supply | 4XAA Batteries | |
| Unobstucted Effective Range | 10M(MAX) | |
| Waterproof Capacity | IP66(for lens/tube only) | |
| Tube Diameter | 6.5mm | |
| Dimension[WXDXH] | 270mmx180mm75mm | |
| Approx. Weight | 350g | |
| Monitor | LCD Screen Type | 3.5" TFT-LCD |
| Effective Pixels | 960X240 | |
| Video System | PAL/NTSC | |
| Transmission Frequency | 2414,2432,2450,2468MHz | |
| Exterior Supply Voitage | 5VDC | |
| Consumption Current[Max.] | 1500mA | |
| Charging Time | 2hours | |
| Working Time | 3hours | |
| Picture/Video Pixels | 640x480 | |
| Video Size | 27M byte/minute | |
| Frame Rate | 30 frame/second | |
| Video Output Level | 0.9-1.3VP-P@75ohm | |
| Receiving Sensitivity | ≦-90dBm | |
| Dimension[WXDXH] | 90x84x22 mm | |
| Approx. Weight | 130g | |
| Operating Temperature | -10℃-50℃/14°F～122°F | |
| Operating Humidity[Max.] | 15-85%RH |
